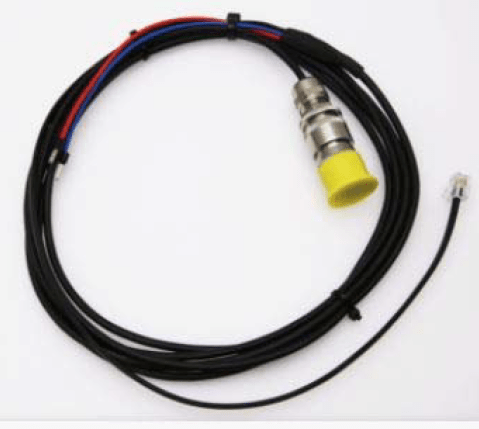

Autoclave Pressure Transducer, 0 to 4 bar absolute, for use only with the Kaye Validator 2000 / AVS. This transducer does not require external power supply, it is connected directly to the Kaye Validator 2000 / AVS IRTD port for power, two wire are then connected in to the relevant channel in the SIM.
The transducer is compensated up to 150⁰C and may be operated continuously or sterilized at this level, including the special circuit electronics. The PT comes with ISO/IEC 17025 Compliant Calibration Certificate Included
Technical Details
Temperature Range of 0⁰C to 140⁰C
Pressure 0 to 4 bar absolute
Accuracy of 10mbar to 121⁰C
Range & Accuracy
Pressure Range: 0 to 4 bar absolute;
Accuracy: ± 10 mbar or better @ 121⁰C
Pressure Range: 0 to 4 bar absolute;
Accuracy: ± 50 mbar or better @ 23⁰C
